ママチャリタイヤ改の転がり抵抗
Modified Bicycle Tire
ママチャリタイヤ改とは:  20inchの普通の自転車用タイヤをサンダーでスリックに加工したものである 。

What is Modified Bicycle Tire?
This tire is normal bicycle tire for female users. The tire is processed to slick with belt grinder.

試作の背景:  タイヤは空気圧を高くすると転がり抵抗が小さくなる。
          しかし、マイレッジ専用タイヤは9kg/cm^2程度でパンクしやすく、FANCY CAROLは鈴鹿では
          コーナーでタイヤにかかる負担が大きいことから7kg/cm^2 位にしか圧をあげていない。
         それに対し、普通の自転車用タイヤはゴムに厚みがあり丈夫そうなので7kg/cm^2 以上まで圧力を
          上げることが出来るかもしれない。
仮設:  ママチャリタイヤ改でマイレッジタイヤには不可能な 高い空気圧を採用することで転がり抵抗を低減できる。

Why did we try this tire? When the air pressure of tire becomes higher,the rolling resistance becomes lower.
But tire for mileage car will burst, when air pressure is higher than 9kg/cm^2.
So Team Fancy Carol uses the tire with the pressure under 7kgf/cm^2 in SUZUKA Circuit. Normal bicycle tire is using thick rubber, and we confirmed that the tire doesn't burst until it reaches to more high pressure in endurance test.
We thought that the normal bicycle tire with very high pressure may achieve lower rolling resistance than tire for mileage car.

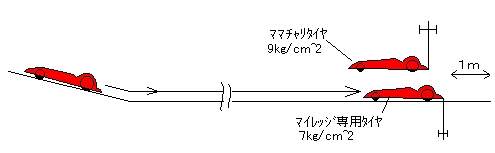

簡易惰行試験結果 Test result of simple test.
3輪の内1輪のみを変更して比較した。
We changed one tire of the three wheels.



ほぼ同等の性能を持っている。
 空気抵抗を小さくするために前面投影面積を小さく設計する場合にマイレッ ジ専用
タイヤの20inchというサイズが障害になる。
 より小径のママチャリ改造タイヤを用いて、空気抵抗を追求するのも良いか も知れない。

The rolling resistances are estimated to be close by this test.
The diameter of M Corp.'s tire for mileage car is 20 inchs.
But different sizes of tires are available for normal bicycles.
If you think that the air flow resistance is more important than rolling resistance
and you want to use the smaller size of tire, this tire may be good.
